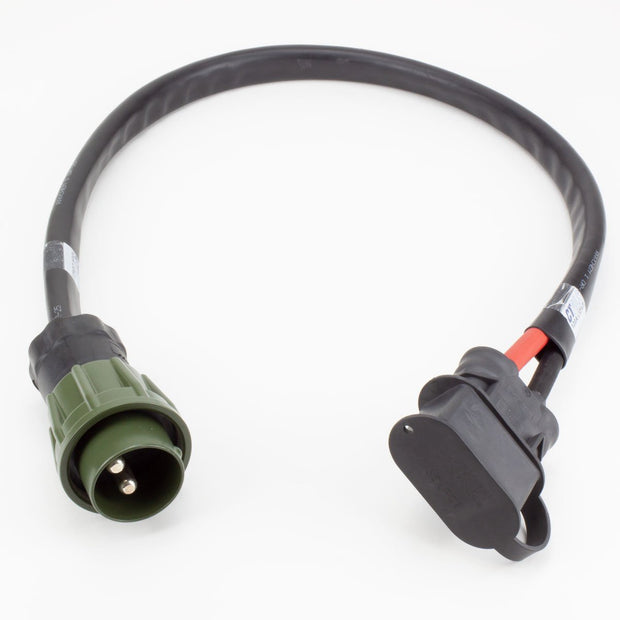

CTALS VG96917 NATO 2-Pole to APP SB120 DR-25 50mm2 1m Adapter Lead

This lead allows the user to adapt power from a VG96917 2-pole connection to the more common 2-Way Anderson Power Products SB120 series. This style of 2-pole NATO panel receptacle is commonly fitted to military and heavy-duty vehicles and trailers and is an option on the recently released INEOS Grenadier.

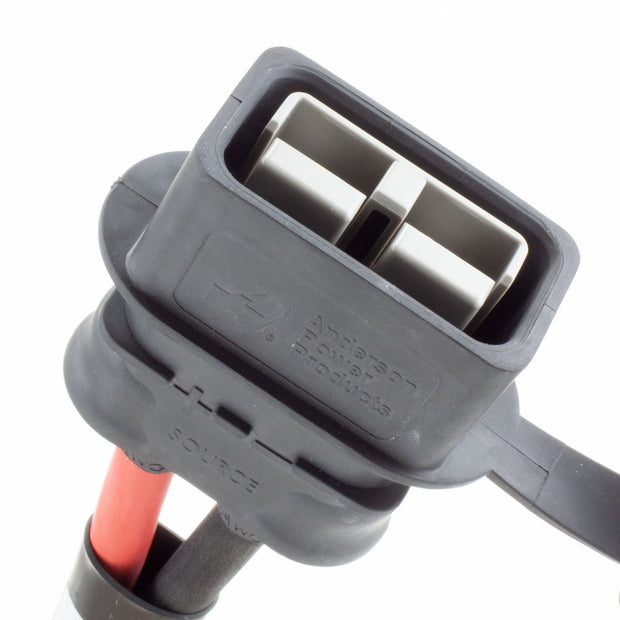

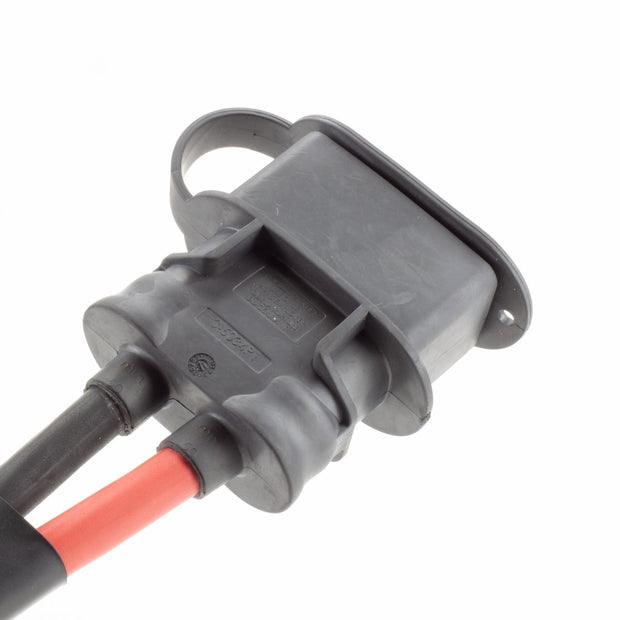

This lead features an Elke Technik 2-pole Plug with 50mm2 male contacts at one end and an environmentally-protected Anderson Power Products SB120 connector at the other. The Source boot covering the SB120 connector is to be used with the corresponding Load boot linked below.

Pleate note: The components in this lead are rated to 120 Amps continuous. Adequate cable sizing and suitable circuit protection must be used to limit the maximum circuit current to no more than 120 Amps in any application of this lead.

Specficiations

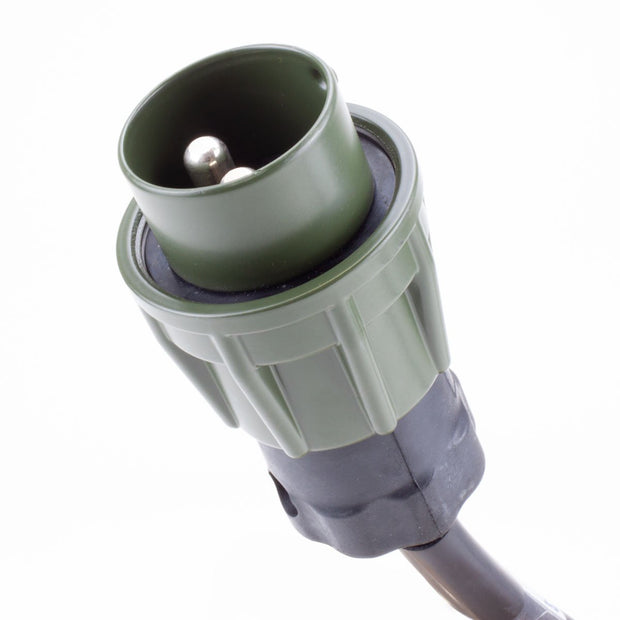

• Elke Technik NATO Plug 2 Pole Male Contacts 50mm2 OLV GRN with Screw Ring (2824-51.00)
• Anderson Power Products SB120 Connector
• Tricab 50mm2 Battery Cable

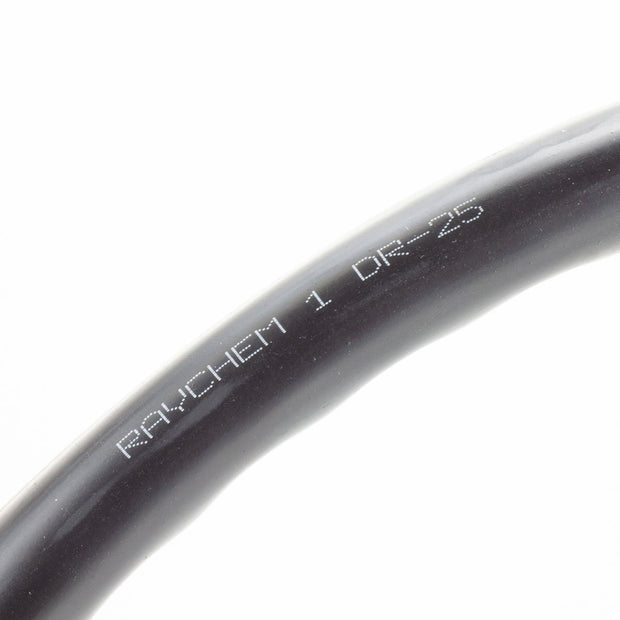

• Raychem DR-25 Heatshrink

Mating Products

• Anderson SB120 2AWG 35mm2 Plug Kit (6800G1)
• Anderson SB120 4AWG 25mm2 Plug Kit (6800G2)
• Anderson SB120 6AWG 16mm2 Plug Kit (6800G3)
• Anderson SB120 1AWG Plug Kit (6800G4)
• Anderson SB120 Environmental Boot Load IP64 (3-6035P1)
