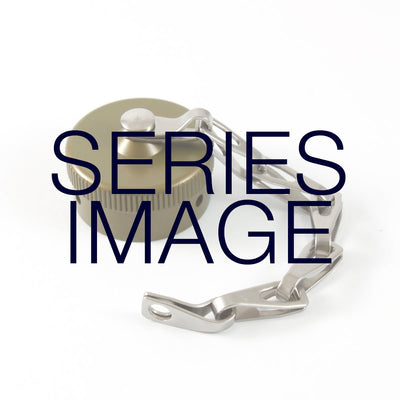

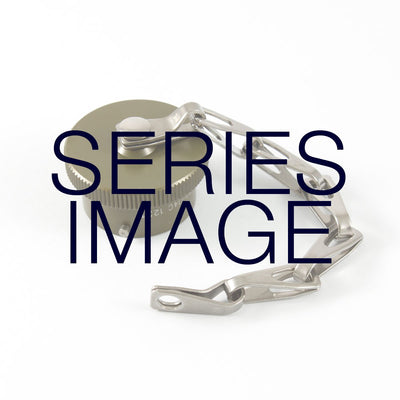

MIL-DTL-26482 Series I Solder
Overview

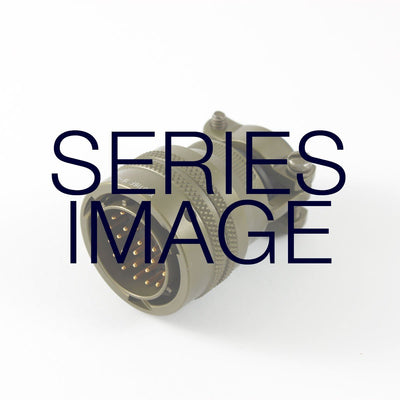

MIL-DTL-26482 connectors offer high density contact arrangements in a miniature circular metal shell. They use a quick disconnect bayonet coupling for rapid positive mating and are environmentally sealed. Mil-DTL-26482 Series I are inter-mateable, inter-mountable and interchangeable with MIL-DTL-26482 Series II.
Features
Rugged Shell
Aluminium-alloy shell and hardware create a rugged connector with minimal weight. These connectors have been extensively used in commercial, military and aerospace environments. Standard shells accept all MIL-DTL-26482 accessories.
Gold-Plated Solder Contacts
Solder Contacts are gold plated per MIL-G-45204 Type II. Socket contacts are closed to eliminate damage from test probes and to help correct misaligned pins during engagement.
Good Current and Voltage Capabilities
Up to 22 Amps with wire gauges from size 24 up to size 16AWG wire. Some are rated at 1500 V AC and others at 2300 V AC (at sea level).
Environmentally Sealed on Four Levels
A complete environmental seal is achieved via a number of individual seals a various points. They use separate individual wire sealing grommet on the rear, through which each wire is fed. The rear grommet is compressed by the back shell to achieve a seal there. A “J” type gland sealing back shell is also available as an option to give a higher level of protection (recommended for high pressure jets of water).
Wide Temperature Range
These connectors will operate in temperatures from -55° to + 125°C under the harshest possible conditions.
